Performance Fueling solutions

N54 Bucketed fuel pump upgrade - "Stock Series"

Sale price $499.00 Regular price $655.00

Horsepower Supported:

Single Shot:

  • 600WHP on Racegas ethanol blends below E50
  • 525WHP on Ethanol blends above E50

Double Shot:

  • 700WHP+ on Racegas ethanol blends below E50
  • 650WHP on Ethanol blends above E50

(If you need more power, we suggest the PFS "External series" that use upgraded fuel lines, and an optional external Fuel Pressure regulator to remove any factory restrictions)

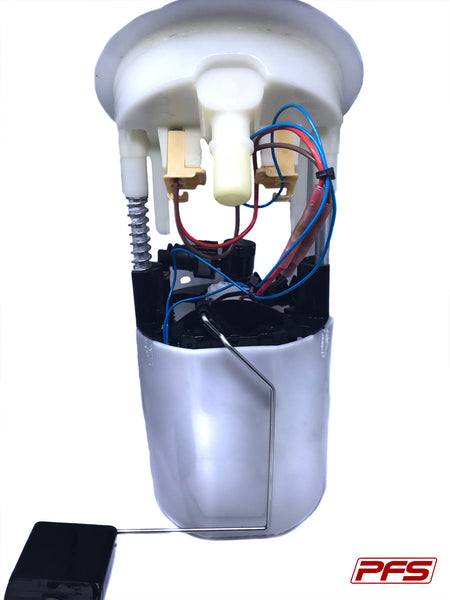

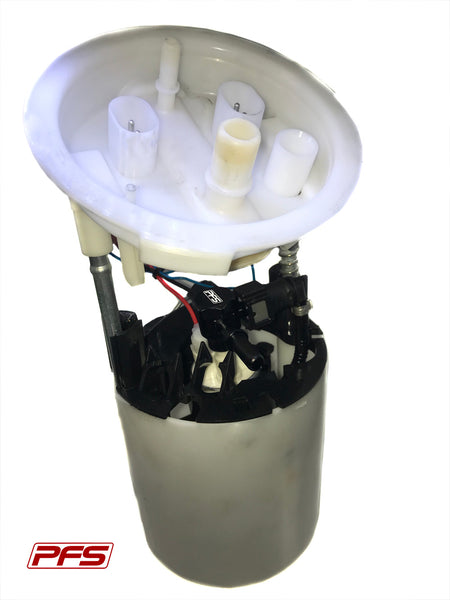

Looking to make 500WHP+ on your N54 powered vehicle, need the fuel to do to so, and don't want to spend a ton of money? Look no further than the PFS bucketed fuel pump upgrade! Available in a single pump (Single Shot), or double pumps (Double Shot) all conveniently located in the same bracket inside a BRAND NEW stock buck. No core charges, no sending in smelly fuel buckets. ALL PFS bucketed pumps come with a brand new bucket, and NO core charge.

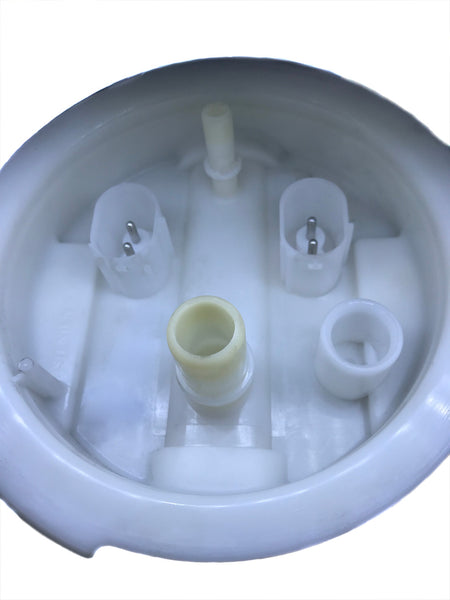

Choice of brand new top hat included pre-installed, no swapping anything, remove old, install new, and go!

  • All PFS Single Shot Bucketed pumps include the following:
    • A complete plug and play solution by simply replacing your stock bucket
    • A new E85 compatible Walbro 450 F9000274 pump
    • A new Walbro filter
    • Flow testing on the PFS test bench prior to shipping
  • All PFS Double Shot Bucketed pumps include the following:
    • A complete plug and play solution by simply replacing your stock bucket
    • Two new E85 compatible Walbro 450 F9000274 pumps
    • Two new Walbro filters
    • Wiring  Harness for the secondary pump with Fused power
    • Hobbs Switch
    • Fuel pump relay
    • Flow testing on the PFS test bench prior to shipping

All PFS parts are 6061-T6 aircraft aluminum and anodized for a tough durable finish, compatible with all fuel types. We ONLY sell the Walbro F9000274, NOT the lower pressure relief F9000267 pumps. Every PFS fuel pump upgrade includes the 274!

  •  Compatible with the following vehicles:
    • 1' E88       (11/2006 — 10/2013)
    • 1' E82       (11/2006 — 10/2013)
    • 3' E90       (02/2004 — 09/2008)
    • 3' E90 LCI (07/2007 — 12/2011)
    • 3' E91       (02/2004 — 08/2008)
    • 3' E91 LCI (07/2007 — 05/2012)
    • 3' E92       (05/2005 — 02/2010)
    • 3' E92 LCI (11/2008 — 06/2013)
    • 3' E93      (09/2005 — 02/2010)
    • 3' E93 LCI (11/2008 — 10/2013)
    • X1 E84     (04/2009 — 06/2015)

Modern fuel systems no longer use rubber components because of their incompatibility with modern enhanced pump gas which contains ethanol and other solvents such as toluene, xylene, and MTBE. Unlike flex tubes, rubber hose will break down very quickly when exposed to these types of fluids. This will allow vapors to leach into the atmosphere and cause the hose to swell and burst. Rubber particles may also contaminate a modern fuel system causing jet pumps, siphon pumps, check valves, regulators, diverters and injectors to fail. When replacing a fuel pump in a new fuel system, it is imperative that a new fuel tube be used. PFS uses fuel tubes in all of its late-model fuel pump assemblies to guarantee compatibly and reliability with the factory fuel system.
